產品概述：

全向運動 手持地面站 車底監控機器人是一款手持直觀操作、控制便捷、高清偵察車底的小型偵察機器人，主要用于狹窄、低矮空間（如：車底）進行視頻偵查與探測作業，亦可加載各種傳感器模塊對目標區域進行探測，運動比較靈活。主要應用于排爆現場爆炸物搜查、車底檢測、危險區域探測等領域。

Product Overview：

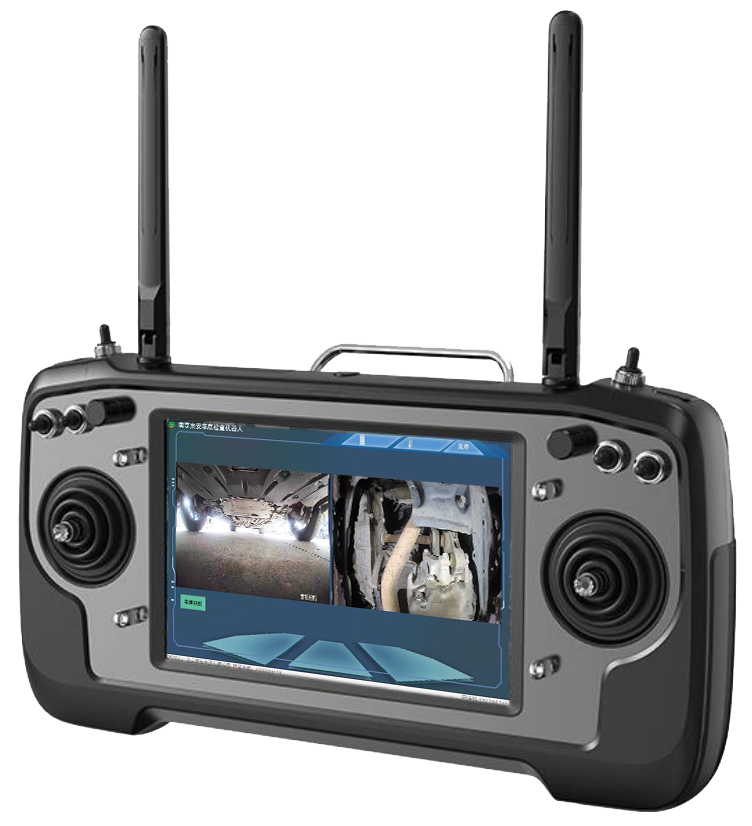

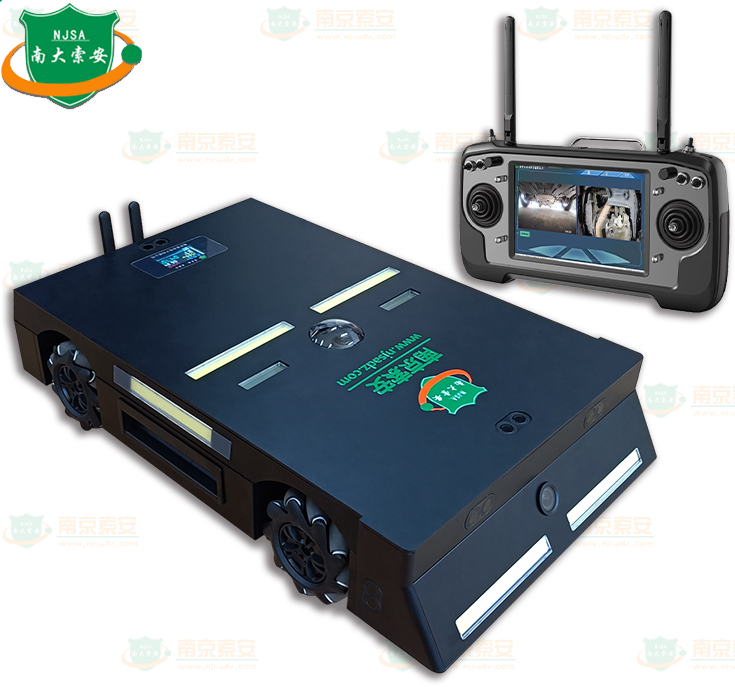

Omnidirectional Motion Handheld Ground Station Vehicle Undercarriage Monitoring Robot is a handheld intuitive operation, convenient control, high-definition reconnaissance of the undercarriage of small reconnaissance robot, mainly used for narrow, low space (such as: under the car) for video detection and detection operations, can also be loaded with a variety of sensor modules for the detection of the target area, the movement is more flexible. It is mainly used in explosive search, vhicle chassis detection and hazardous area detection.

產品特點：

1) 外形小巧：本體呈扁平狀，更加適宜在狹窄、低矮空間內作業；

2) 一鍵開關機：車底機器人本體具備一鍵開關機功能；

3) 運動自如：麥克納姆輪四輪驅動全向運動，運動性能好。行進速度快，工作效率高，特別適合大面積低矮區域的快速檢查；

4) 無線傳輸：機器人可生成WIFI，具備圖像、視頻、控制無線傳輸鏈路；

5) 多視角偵察：頂視、前視2路固定高清監控攝像模組（攝像主碼流不低于400萬像素）

6) 補光可控：自動感應自動開關照明，多路LED補光燈設計，配置有車前、車頂、車側不同方向的LED補光燈;

7) 自動避障：通過機器人本體的雷達測距模塊激光雷達、超聲波雷達測距傳感器，能自動調整移動方向進行避障。

8) 路面適應性: 四級以上公路地面。

Product features：

1) Compact shape: the body is flat, more suitable for working in narrow and low space;

2) One-key switch: the vehicle chassis inspection robot body has a one-key switch function;

3) Freedom of movement: McNamee wheel four-wheel drive omnidirectional movement, good motion performance. Fast traveling speed, high efficiency, especially suitable for rapid inspection of large low-lying areas;

4) Wireless transmission: the robot can generate WIFI with image, video and control wireless transmission link;

5) Multi-view reconnaissance: top view, front view 2-way fixed high-definition monitoring camera module (camera main stream is not less than 4 megapixels)

6) Controllable fill light: auto-sensing auto-switching lighting, multi-channel LED fill light design, configured with front, roof, side of the car in different directions of the LED fill light;

7) Automatic Obstacle Avoidance: Through the radar ranging module lidar, ultrasonic radar ranging sensors of the robot body, it can automatically adjust the moving direction for obstacle avoidance.

8) Road adaptability: Highway ground above grade four.

應用環境：

1) 各類車輛底盤下或列車、飛機等內部座位下檢查。

2) 大型貨柜、貨架、集裝箱的底部檢查。

3) 海關卡口、公安檢查站、國家大型會議、機場監所等車行通道安全檢查管控區域。

Application environment：

1) Inspection under the chassis of all types of vehicles or under the internal seats of trains, aircraft etc.

2) Inspection under the bottom of large containers, shelves and containers.

3) Safety inspection and control areas of vehicle lanes such as customs chokepoints, public security checkpoints, large national conferences, airport supervisors, etc.

機器人本體 部分參數：

1）2路固定高清監控攝像模組（可定制≤4路監控模組）；

2）Wi-Fi無線網絡傳輸，雙頻無線，圖像數據通訊能力強；遠程操控距離≤80 米（空曠區域）；自動探測車輛進行掃描啟停及照明等控制；

3）麥克納姆輪四輪驅動全向運動，運動性能好，可爬緩坡路、機器人越障能力強; 配置單輪雙臂減震系統；全向運動：支持前進、后退，原地360°左轉、右轉，差速左轉、右轉；

4）機器人本體能自動完成對待檢車輛車前居中定位。機器人自動查驗過程中，可進并自主糾正行進方向，對任意長度車輛，在無人工干預的情況下，不出現行進偏出車底或碰撞車體的情況，正常完成檢查。

5）配置雙路電池，在不使用專業工具的前提下，電池可進行拆卸和更換?？绍浖缑鎸崟r顯示電池電壓、消耗電量、內部溫度，單塊電池持續工作時間4 小時以上，待機時間不低于10小時以上;

6）多路、多方向高亮LED照明燈，自動感應開關；

7）整體防護等級IP65;

8）工作環境：-10℃～＋60℃，0～90%（不結露）。

Robot body part parameters：

1）2-channel fixed high-definition monitoring camera module (≤ 4-channel monitoring module can be customized);

(2) Wi-Fi wireless network transmission, dual-frequency wireless, image data communication capability; remote control distance ≤ 80 meters (open area); automatic detection of the vehicle chassis for scanning start-stop and lighting control;

(3) McNamee wheel four-wheel drive omnidirectional movement, good motion performance, can climb gently sloping roads, robot overrun ability; configuration of single-wheel dual-arm damping system; omnidirectional movement: support for forward, backward, in situ 360 ° left turn, right turn, differential left turn, right turn;

(4) The robot body can automatically complete the vehicle to be inspected in front of the car centering position. Robot automatic inspection process, can enter and autonomously correct the direction of travel, for any length of vehicle, in the absence of human intervention, does not appear to travel out of the bottom of the car or collision with the body of the case, the normal completion of the check.

(5) Configuration of dual-channel battery, without the use of specialized tools, the battery can be disassembled and replaced. Software interface real-time display of battery voltage, power consumption, internal temperature, a single battery continuous working time of more than 4 hours, standby time of not less than 10 hours or more.

6）Multi-channel, multi-direction bright LED lighting, automatic sensor switch;

7) Overall protection grade IP65;.

8) Working environment: -10 ℃ ~ +60 ℃, 0 ~ 90% (no condensation).

產品軟件 部分參數：

1) 支持APP操控小車實時運動，支持2路攝像模組顯示畫面（可定制≤4路監控模組）；

2) 支持各制式車牌識別（需另外選配）,支持車底抓拍圖像與車牌號碼綁定存儲；

3) 支持各個安檢記錄的查詢；

4) 支持查看小車電量等狀態；

Product software parameters：

1) Support APP to control the real-time movement of the car, support 2-way camera module display screen (can be customized ≤ 4-way monitoring module);

2) Support all kinds of license plate recognition (optional), support vehicle chassis capture image and license plate number binding storage;

3) Support the query of each security check record;

4) Support checking the status of the trolley's power;
